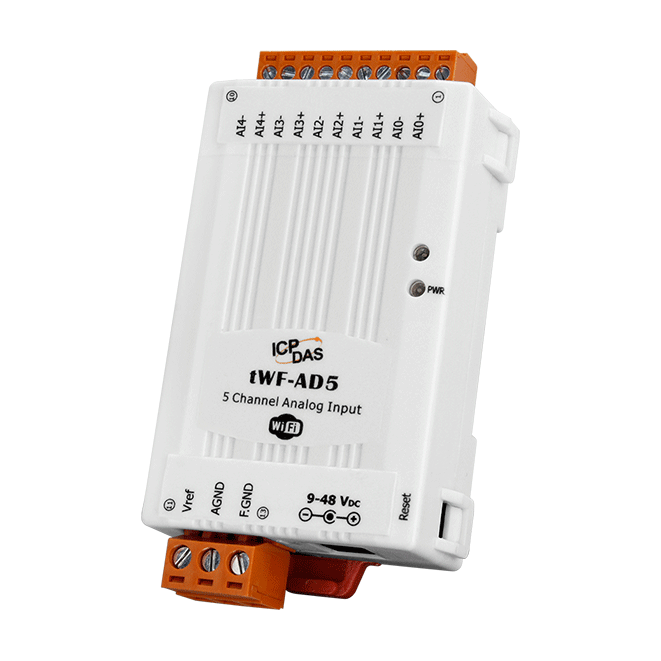

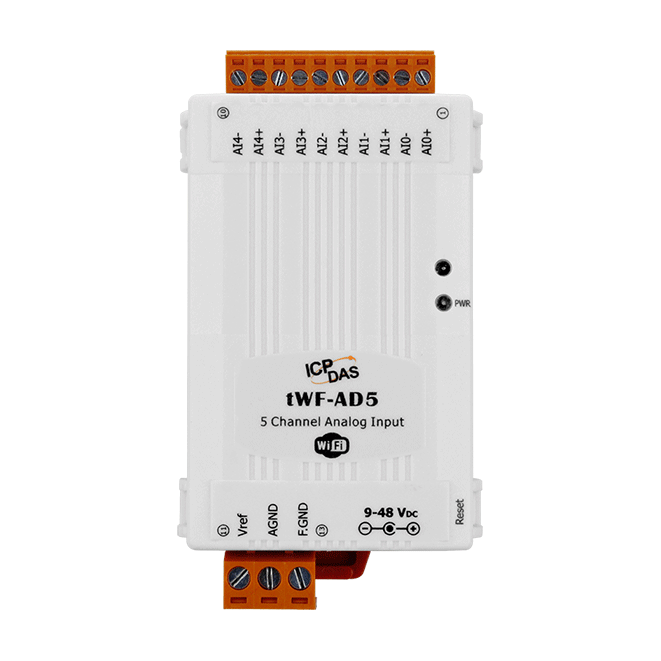

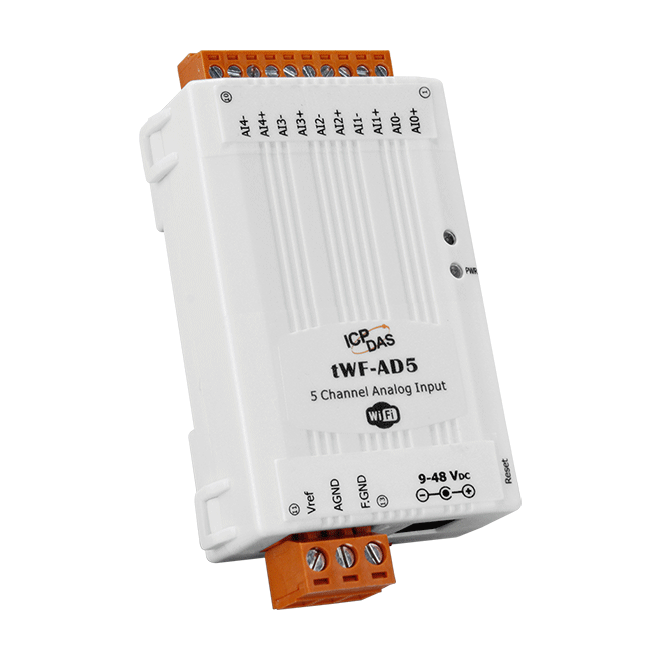

tWF-AD5
微型 Wi-Fi I/O 模块, 5-ch AI (仅限亚洲)
特色
• Wi-Fi communication remote I/O controller.
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Isolation differential voltage input
• 14/12 bit resolution in Normal/Fast mode
• Wide power supply range: 9 ~ 48 VDC
• Cost-effective
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Isolation differential voltage input
• 14/12 bit resolution in Normal/Fast mode
• Wide power supply range: 9 ~ 48 VDC
• Cost-effective
介绍
The tWF-AD5 module have 5 channels differential analog input as WLAN connection complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the tWF-AD5 make an easy way to incorporate wireless connectivity into monitoring and control systems. They also support Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software or HMI Modbus APP and offer easy and safe access for users from anytime and anywhere.
应用
• Building Automation
• Security Automation
• Machine Automation
• Factory Automation
• Remote Diagnosis
• Remote Maintenance
• Testing Equipment
相似产品
| 隔离 | |
|---|---|
| 內部隔离 | 3000 VDC |
| EMS 防护 | |
|---|---|
| EFT (IEC 61000-4-4) | Yes ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED 灯 | |
|---|---|
| 状态 | 1 x Power 1 x Status |
| Wi-Fi | |
|---|---|
| 标准 | IEEE 802.11 b/g/n |
| 模式 | Access Point (Limited AP) & Station (STA) |
| 加密 | Open,WEP, WPA2 |
| 数据传输率 | Data Rate, 2.4 GHz |
| 模拟量输入 | |
|---|---|
| 通道数 | 5 |
| 类型 | Voltage: ±1.25 V, ±2.5 V, ±5 V, ±10 V |
| 分辨率 | Normal Mode: 14-bit Fast Mode: 12-bit |
| 精度 | Normal Mode: +/-0.1% Fast Mode: +/-0.5% |
| 电源 | |
|---|---|
| 反极性保护 | Yes |
| 输入范围 | +9 VDC ~ +48 VDC |
| 功耗 | 0.84W Max. |
| 机构 | |
|---|---|
| 尺寸 (mm) | 52 x 97 x 27 (W x L x H) |
| 安裝 | DIN-Rail Mounting |
| 环境 | |
|---|---|
| 工作温度 | -25 ~ +75 °C |
| 储存温度 | -30 ~ +75 °C |
| 湿度 | 10 ~ 95% RH, Non-condensing |
