Industrial 10/100 Base-T to 100 Base-FX Media Converter (Single mode, SC connector)
特色
• Automatic MDI / MDI-X crossover for plug-and-play
• Each port supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Supports +10 ~ +30 VDC voltage
• Supports operating temperatures from 0 °C ~ +70 °C
• Single-mode, SC Connector Fiber supports
• DIN-Rail mount for industrial usage
介绍

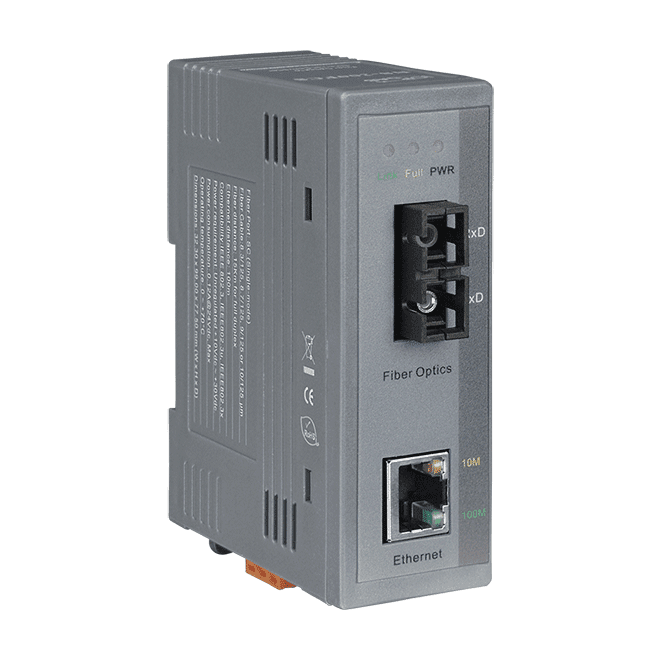

The NS-200FCS is an Ethernet (10/100Base-TX) to Fiber Optic (100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function. The NS-200FCS operates at either half or full duplex mode. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-200FCS is just 32.30 mm, so it can be used where space is important.
应用
相似产品
| LED 灯 | |
|---|---|
| 状态 | PWR, 10M, 100M, Link/Act, Full duplex/Half duplex(Fiber Port) |
| 以太网 | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-TX |
| 标准 | IEEE802.3, 802.3u, 802.3x |
| 處理型式 | Store & forward wire speed switching |
| MAC 長度 | 1024 |
| 記憶体頻寬 | 1.4 Gbps |
| 隔离 | 1500 Vrms 1 minute |
| 光纤 | |
|---|---|
| Ports | 1 x 100 Base-FX, SC connector |
| 模式 | Single-Mode |
| 光纖線 | 8.3/125, 8.7/125, 9/125 or 10/125μm |
| 距离 | 15 km, (9/125 μm recommended) for full duplex |
| 波長 | 1300 or 1310nm |
| TX 輸出 | -15 dBm Min. -8 dBm Max. |
| RX 靈敏度 | -36 to -31 dBm |
| 电源 | |
|---|---|
| 反极性保护 | Yes |
| 输入范围 | +10 ~ +30 VDC (Non-isolation) |
| 功耗 | 0.12 A@24 VDC, +/- 5% arrowed with 100M Full duplex |
| 机构 | |
|---|---|
| 外壳 | Plastic |
| 尺寸 (mm) | 33 x 85 x 107 (W x L x H) |
| 安裝 | DIN-Rail Mounting |
| 环境 | |
|---|---|
| 工作温度 | 0 °C ~ +70 °C |
| 储存温度 | -20 °C ~ +85 °C |
| 湿度 | 10% ~ 90% RH, non-condensing |
