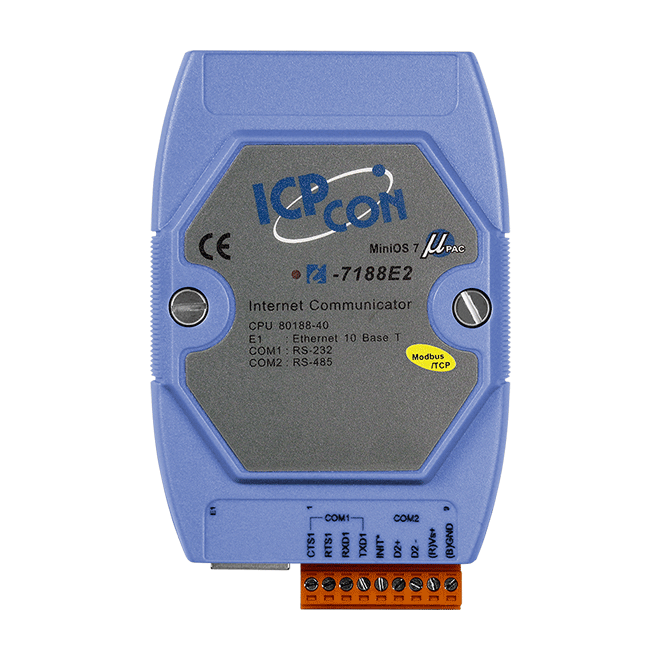

I-7188E2-MTCP
I-7188 掌上型 Modbus 閘道器，搭載 80188-40 CPU 和 384 KB SRAM (蓝壳)
特色
• 透過網路整合串列設備
• 支援 Modbus/TCP 轉 Modbus/RTU
• 內嵌高穩定及高效能的 MiniOS7 操作系統
• 易於使用的 SDK（C 語言）
• 提供多樣通訊介面
‣ 10BASE-T NE2000或相容 Ethernet
‣ RS-232/485
• 可程式控制 LED 指示燈
• 內建看們狗機制 (Watchdog Timer)
• 支援 Modbus/TCP 轉 Modbus/RTU
• 內嵌高穩定及高效能的 MiniOS7 操作系統
• 易於使用的 SDK（C 語言）
• 提供多樣通訊介面
‣ 10BASE-T NE2000或相容 Ethernet
‣ RS-232/485
• 可程式控制 LED 指示燈
• 內建看們狗機制 (Watchdog Timer)
介绍
The I-7188E2-MTCP is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/485 devices to an Ethernet network. The I-7188E2-MTCP also works as a Modbus TCP to RTU gateway that supports most SCADA/HMI communications based on the Modbus TCP protocol.
ICP DAS provides easy-to-use software development tool kits (XServer, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
ICP DAS provides easy-to-use software development tool kits (XServer, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
应用
相似产品
| CPU 模块 | |
|---|---|
| CPU | 80188, 40 MHz 或相容 |
| EEPROM | 2 KB |
| 閃存 | 512 KB |
| 內存 | 384 KB |
| 看门狗计时器 | 是 |
| LED 灯 | |
|---|---|
| 状态 | 1 x 系統 |
| 以太网 | |
|---|---|
| Ports | 1 x RJ-45, 10 Base-T |
| 串口 | |
|---|---|
| 端口 | 1 x RS-232, 1 x RS-485 |
| 波特率 | 最高達 115200 bps |
| 电源 | |
|---|---|
| 输入范围 | +10 ~ +30 VDC |
| 功耗 | 2.0 W |
| 机构 | |
|---|---|
| 尺寸 (mm) | 72 x 112 x 33 (W x H x D) |
| 安裝 | 標準導軌式 (DIN-Rail) 安裝 |
| 环境 | |
|---|---|
| 工作温度 | -25 ~ +75 °C |
| 储存温度 | -40 ~ +80 °C |
| 湿度 | 5 ~ 90 %, 無凝露 |
